Product Overview

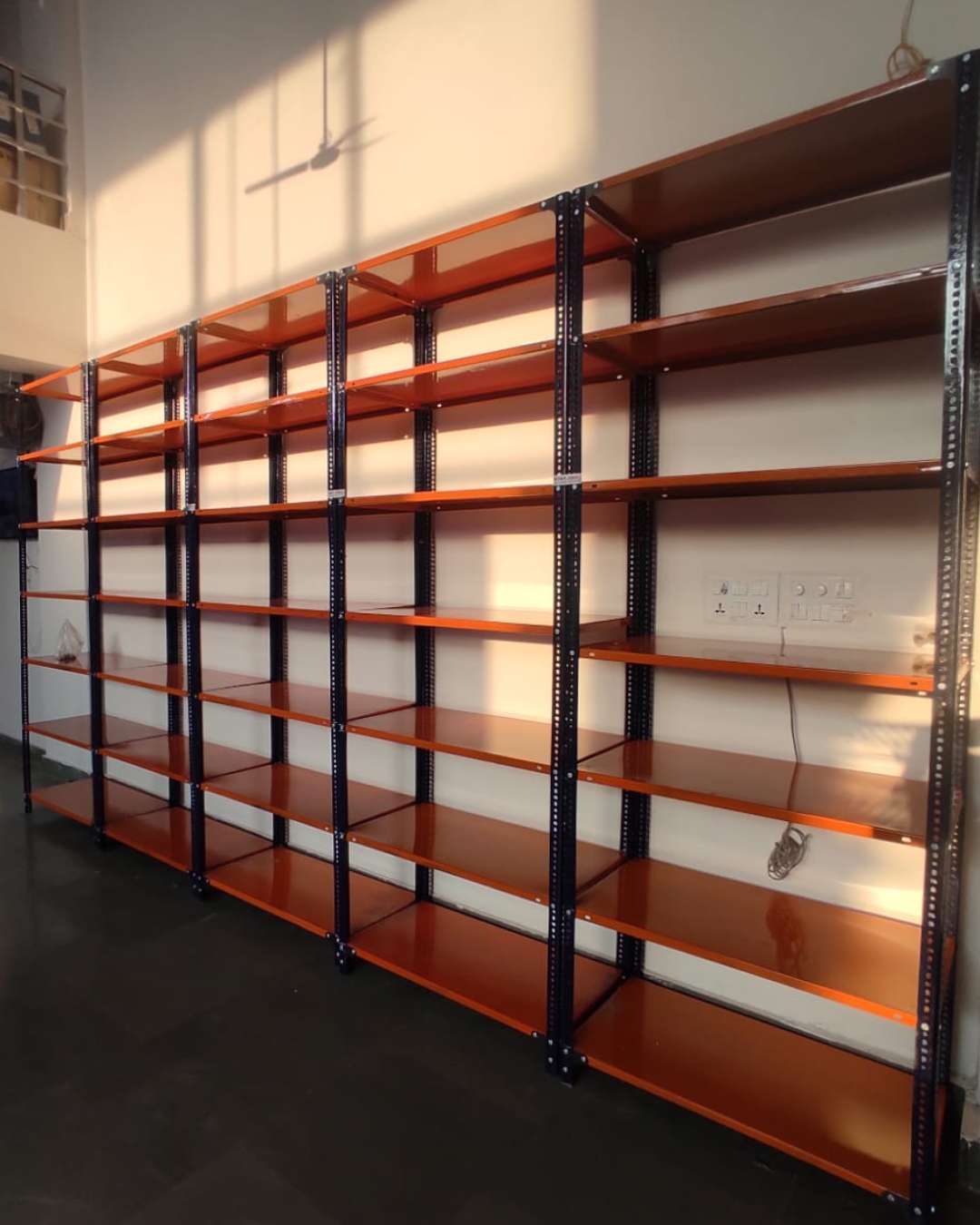

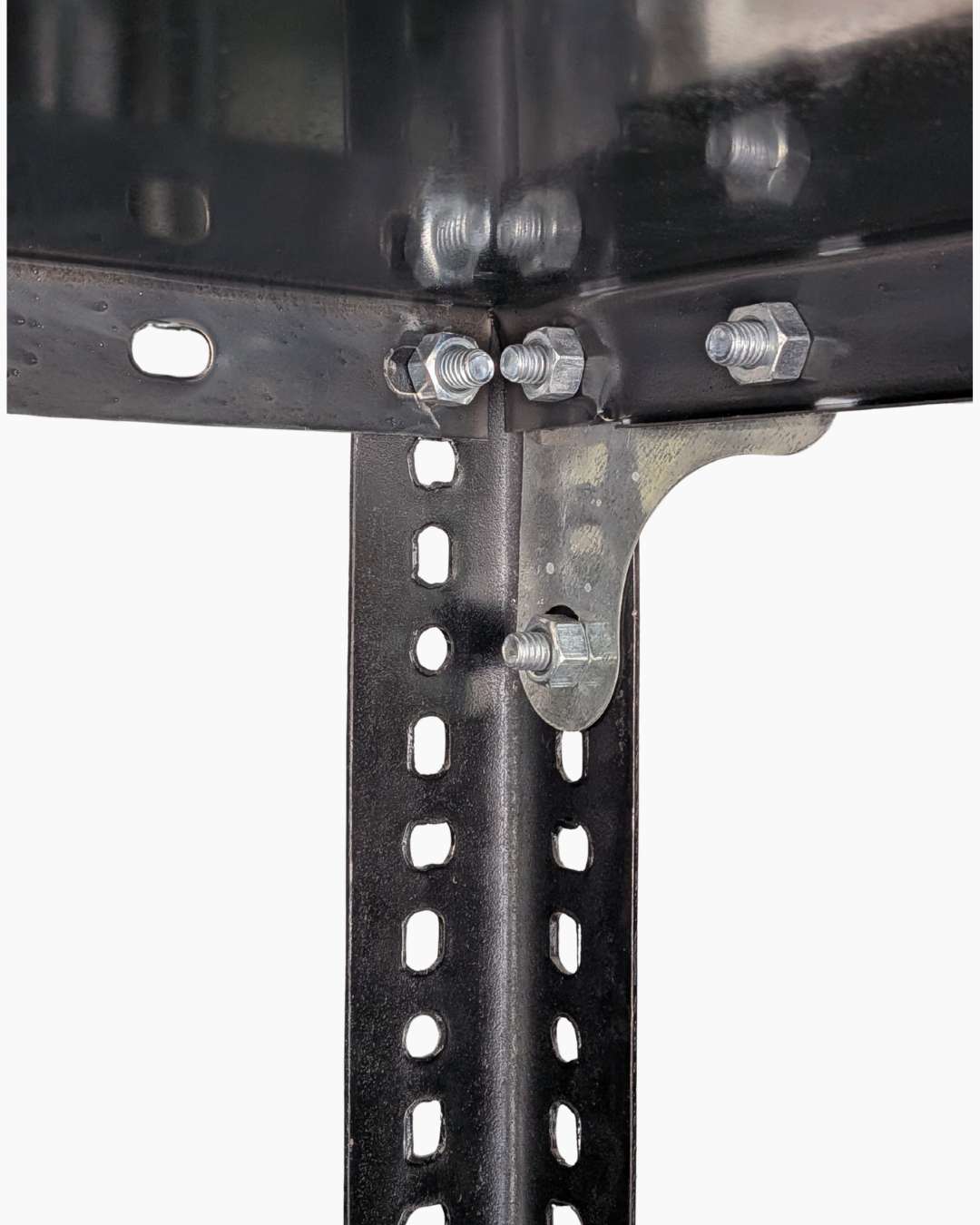

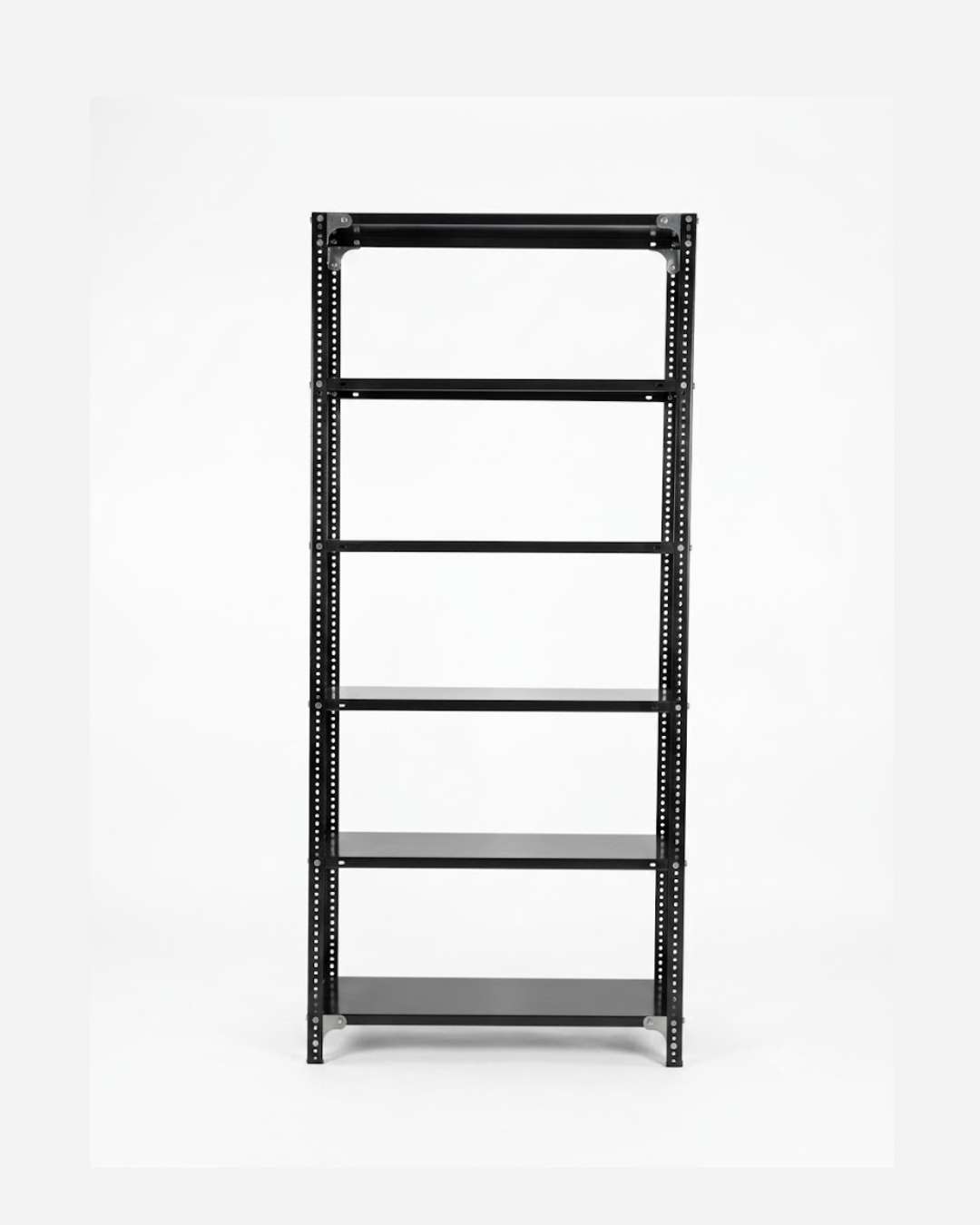

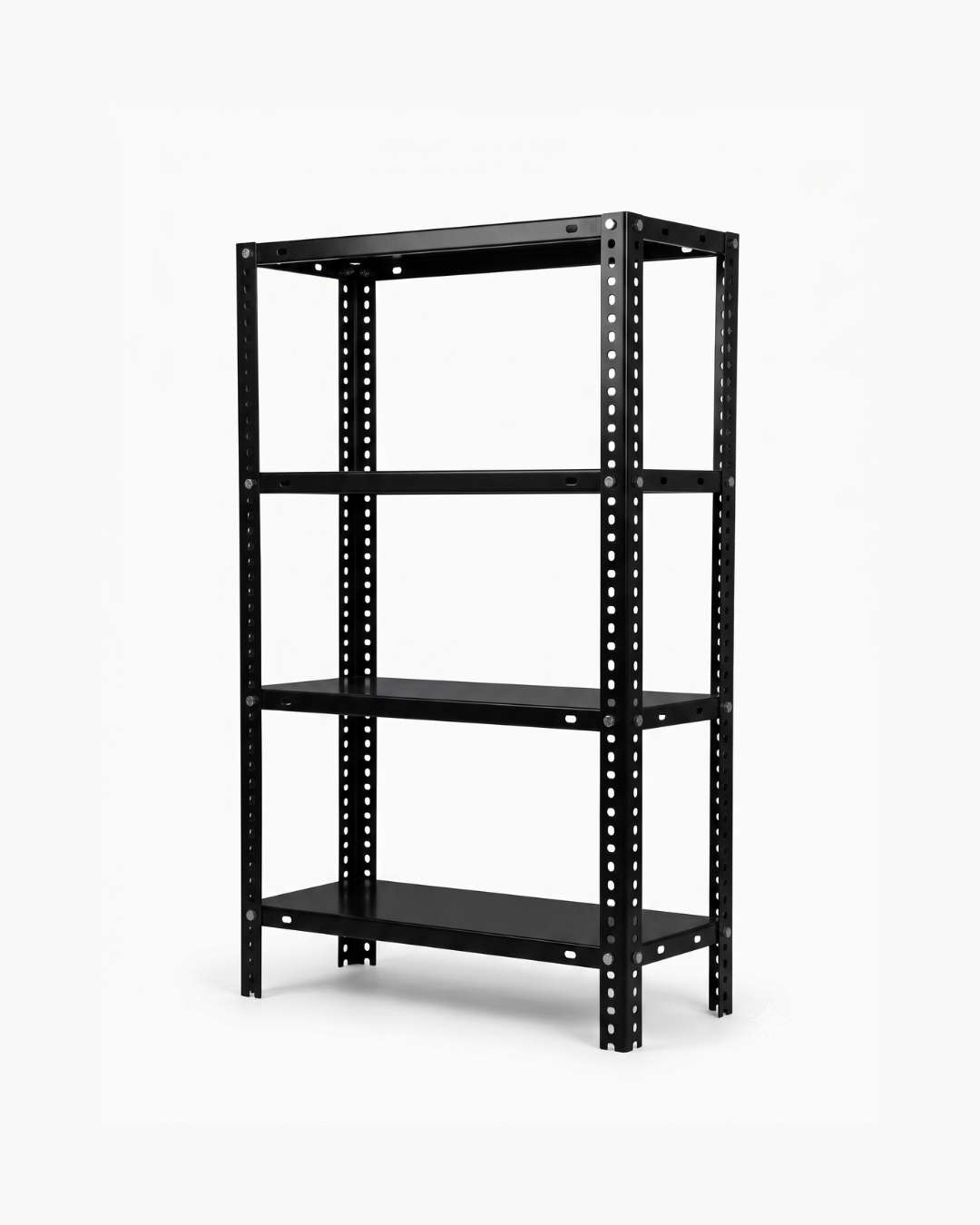

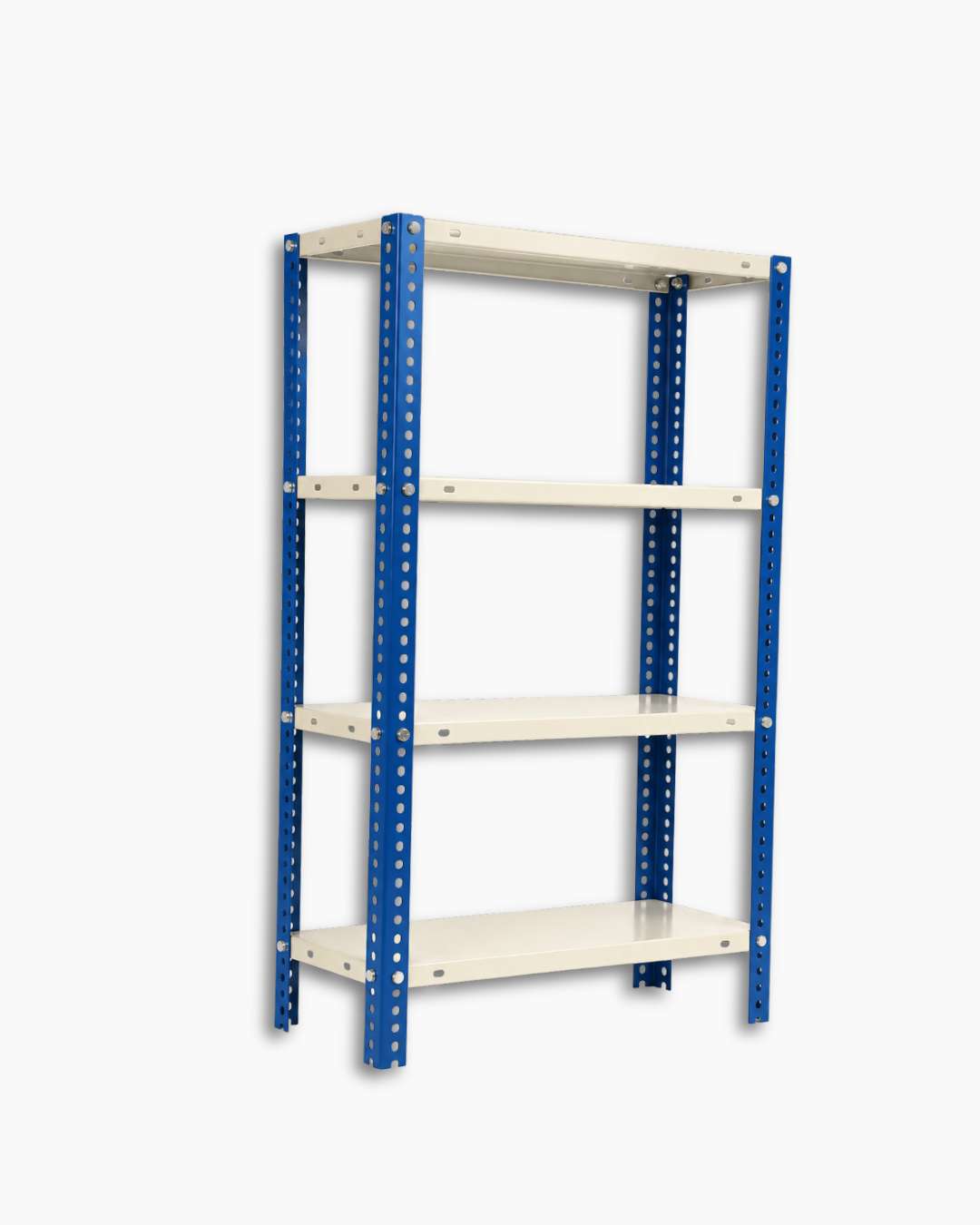

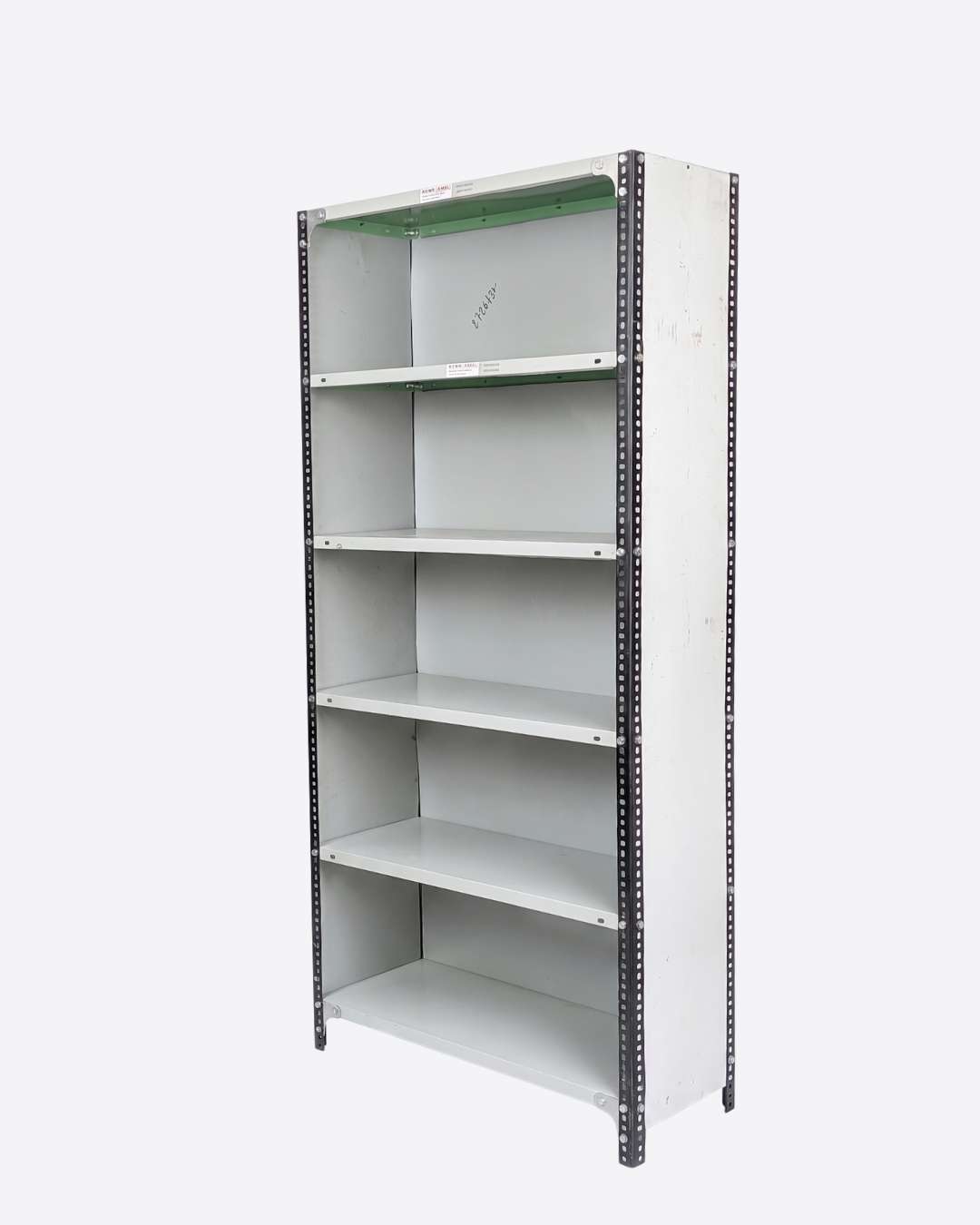

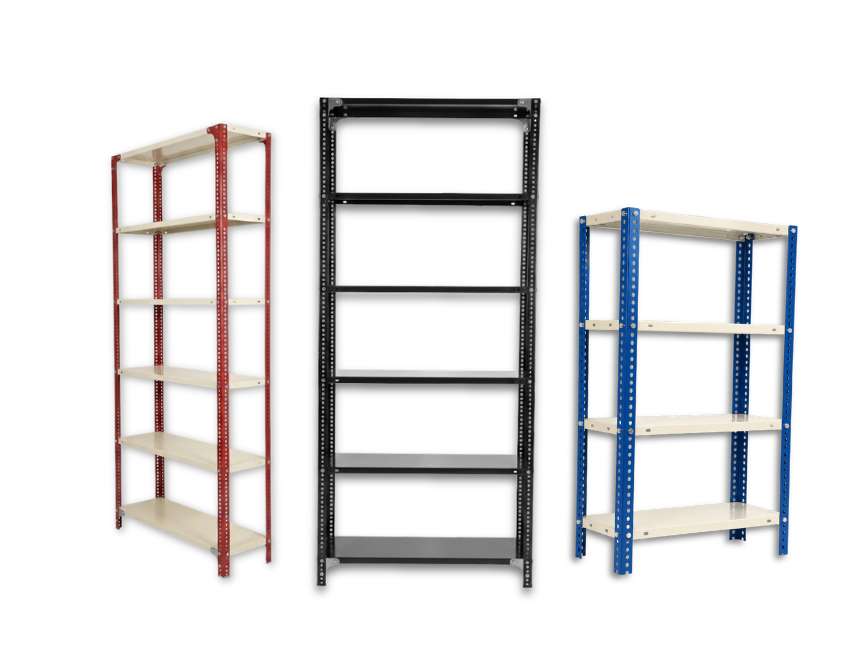

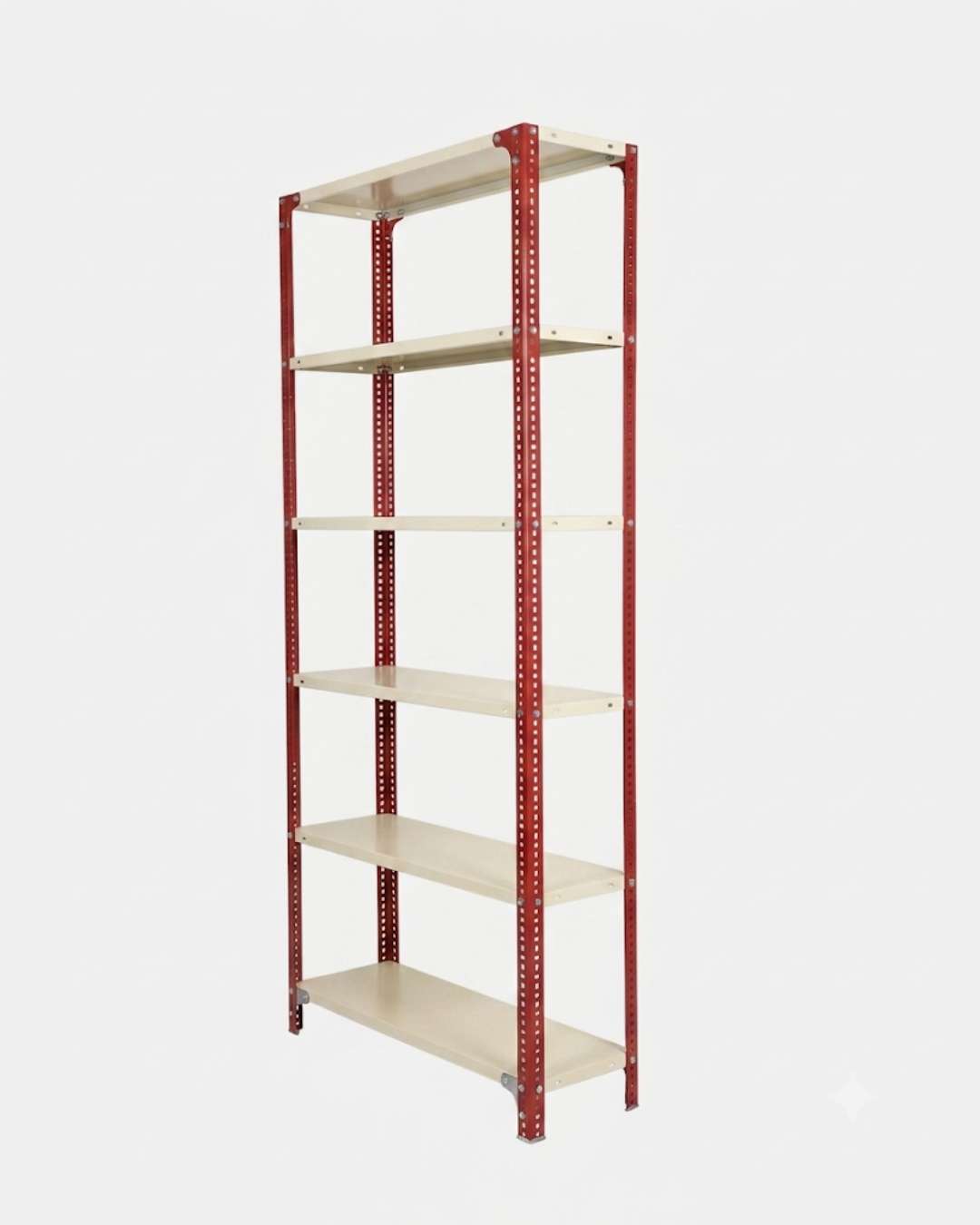

Slotted Angle Racks are adjustable, heavy-duty shelving systems designed for efficient vertical space utilization. The product features pre-punched metal angles and configurable panels, making it an ideal storage solution for warehouses, industrial spaces, retail outlets, and office record archives.

Available Sizes

• Depth: 9 in, 12 in, 15 in, 18 in, 21 in, and 24 in.

• Width: 23 in, 29 in, 35 in, 41 in, and 47 in.

• Height: Ranging from 2 ft up to 10 ft

Load Capacity & Specifications

The weight capacity per shelf is determined by the combination of the panel gauge (shelf thickness) and the angle gauge (upright support thickness):

• Light Utility: A 26-gauge panel paired with an 18-gauge angle supports up to 15 kg per shelf.

• Standard Utility: A 24-gauge panel paired with an 18-gauge angle supports 25–30 kg per shelf.

• Medium Duty: A 22-gauge panel paired with a 16-gauge angle supports 45–60 kg per shelf.

• Heavy Duty: A 20-gauge panel paired with a 14-gauge angle supports 70–80 kg per shelf.

• Industrial Duty: An 18-gauge panel paired with a 14-gauge angle supports 100–120 kg per shelf.
